Five models from the compact H-600 to the landmark H-1200 — every unit purpose-built for continuous commercial hospitality. Sales, installation and service across Canada.

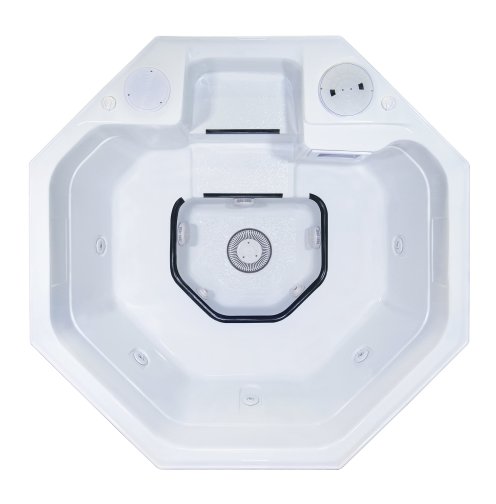

Our most compact commercial model — ideal for facilities with space constraints or lower bather capacity requirements. The H-600 delivers full commercial-grade performance in a space-efficient 78" square footprint.

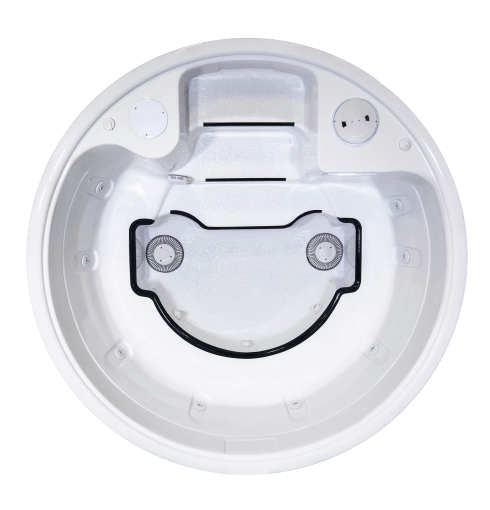

The most popular model in our lineup. The H-800 strikes the perfect balance between capacity and footprint, making it the go-to choice for hotel amenity floors and residential condo pools.

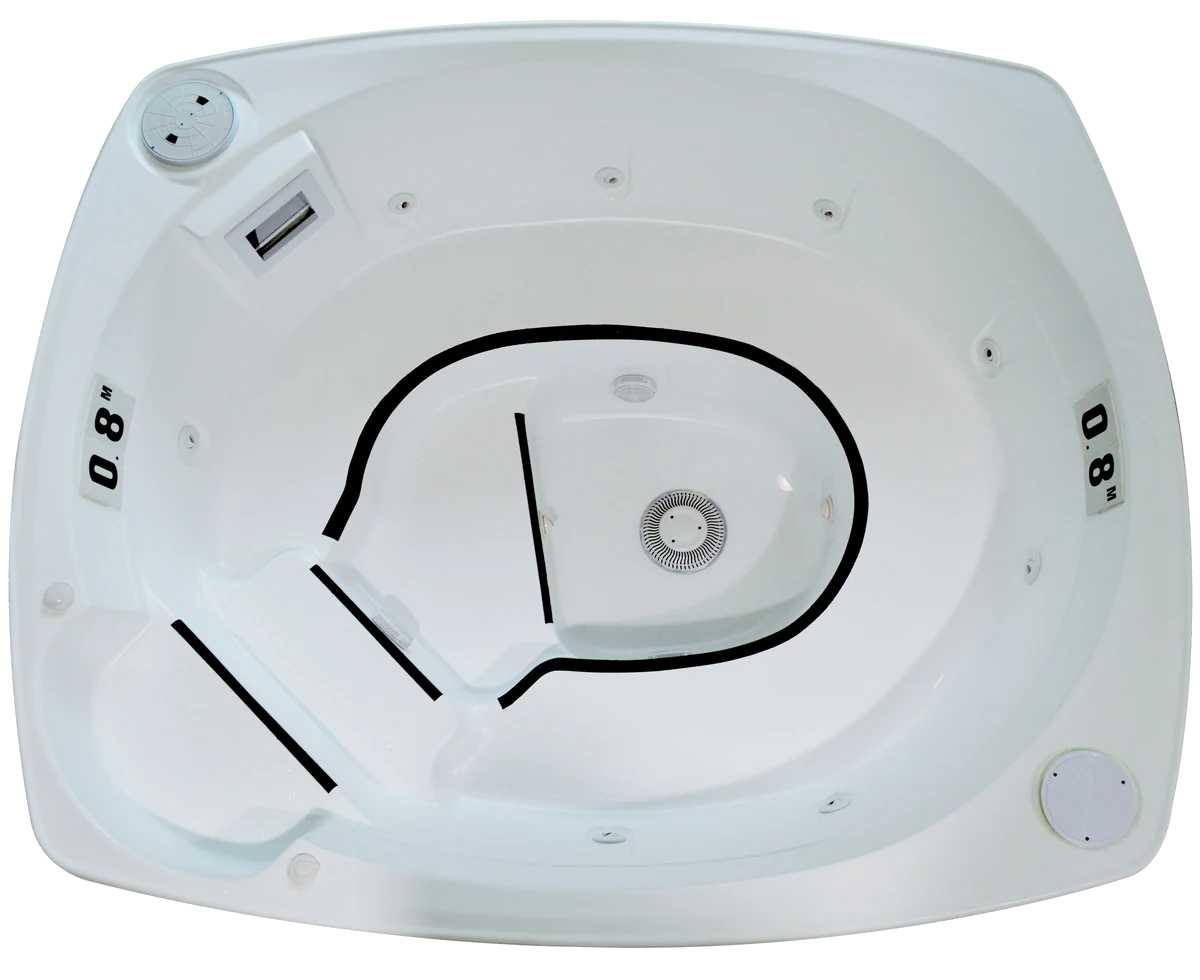

A rectangular format design that seats up to 10 bathers comfortably. The H-1000 is engineered for high-traffic hotel amenity spaces and premium residential developments.
The H-1100 is our large-format square model designed for premium hospitality venues where the spa is a signature amenity. Accommodates 10-11 bathers with full hydrotherapy coverage.

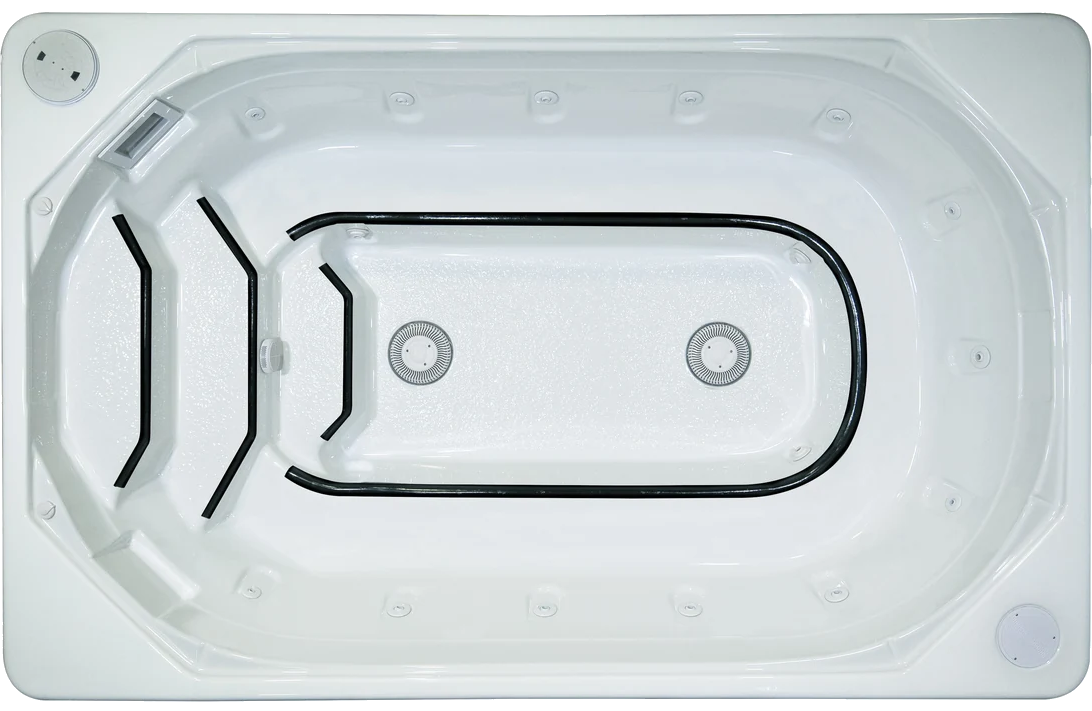

The largest model in the HydroTher commercial lineup. The H-1200 is designed for flagship installations where no compromise is acceptable — a centrepiece amenity for the world's finest properties.
Every spec, every model — choose the right fit for your property.
| Specification | H-600 | H-800 ★ | H-1000 | H-1100 | H-1200 |
|---|---|---|---|---|---|
| Capacity | 5–6 persons | 7–8 persons | 9–10 persons | 10–11 persons | 11–12 persons |
| Dimensions | 78″ × 78″ × 38″ | 96″ × 96″ × 42.5″ | 96″ × 120″ × 42.5″ | 108″ × 108″ × 42.5″ | 120″ × 120″ × 42.5″ |
| Volume | 375 US gal | 600 US gal | 800 US gal | 950 US gal | 1,100 US gal |
| Hydro Jets | 5 jets | 8 jets | 10 jets | 11 jets | 12 jets |
| Jet Pump | 0.75 hp + 0.5 hp circ. | 1.5 hp + 0.5 hp circ. | 2 × 1.5 hp + 0.5 hp | 2 × 1.5 hp + 0.75 hp | 2 × 2 hp + 0.75 hp |
| Heater | 11 kW Coates | 11 kW Coates | 11 kW Coates | 11 kW Coates | 11 kW Coates |
| Empty Weight | 680 lbs | 850 lbs | 1,050 lbs | 1,150 lbs | 1,300 lbs |
| Best For | Compact spaces | Hotels & condos | High-traffic amenity | Premium venues | Flagship properties |
| Configure | Configure → | Configure → | Configure → | Configure → | Configure → |
★ Most popular model | All models manufactured in Canada by HydroTher
All Models Include
Mechanical Support Systems
Each mechanical pack arrives factory-plumbed, water-tested, fully labeled, and mounted on a waterproof plastic base — built exclusively with Hayward Pool Products components.
| Model | Series | Voltage / Phase | Circ. Pump | Jet Pump | Filter | Heater |
|---|---|---|---|---|---|---|
| H-600 Series | ||||||
| HCSP1-240 | H-600 | 240V, 1-phase | ½ hp | ¾ hp | 100 sq.ft | 11 kW |
| HCSP1-208 | H-600 | 208–230/460V, 3-phase | ½ hp | ¾ hp | 100 sq.ft | 12 kW |
| HCSP1-575 | H-600 | 575V, 3-phase | ½ hp | ¾ hp | 100 sq.ft | 12 kW |
| H-800 Series | ||||||
| HCSP2-240 | H-800 | 240V, 1-phase | ½ hp | 1.5 hp | 150 sq.ft | 11 kW |
| HCSP2-280 | H-800 | 208–230/460V, 3-phase | ½ hp | 1.5 hp | 150 sq.ft | 12 kW |
| HCSP2-575 | H-800 | 575V, 3-phase | ½ hp | 1.5 hp | 150 sq.ft | 12 kW |
| H-1000 Series | ||||||
| HCSP3-240 | H-1000 | 240V, 1-phase | ¾ hp | 1.5 hp | 150 sq.ft | 11 kW |
| HCSP3-208 | H-1000 | 208–230/460V, 3-phase | ¾ hp | 1.5 hp | 150 sq.ft | 12 kW |
| HCSP3-575 | H-1000 | 575V, 3-phase | ¾ hp | 1.5 hp | 150 sq.ft | 12 kW |
| H-1100 & H-1200 Series | ||||||
| HCSP4-240 | H-1100 / H-1200 | 240V, 1-phase | ¾ hp | 2 hp | 200 sq.ft | 15 kW |
| HCSP4-208 | H-1100 / H-1200 | 208–230/460V, 3-phase | ¾ hp | 2 hp | 200 sq.ft | 15 kW |
| HCSP4-575 | H-1100 / H-1200 | 575V, 3-phase | ¾ hp | 2 hp | 200 sq.ft | 15 kW |
Maximum hydraulic efficiency and superior flow. Self-priming with suction lift up to 10 feet. 2″ × 2.5″ union connections.
Cartridge filtration — no backwashing required. Easy-Lok ring for quick maintenance. Reduces operational energy costs.
Established commercial heater manufacturer since the 1940s. Reliable water heating across all pack configurations.
